HOW TO INSTALL VALVE REMOTE SYSTEM KIT
This kit offers a remote control with RF433MHz signal to control the operating mode of the exhaust valves, three plugs, a water-isolated logic system, and an electrical simulator for cars with more than one original exhaust valve.
HOW TO INSTALL
The installation should be done with vehicle ignition OFF.
STEP 1:

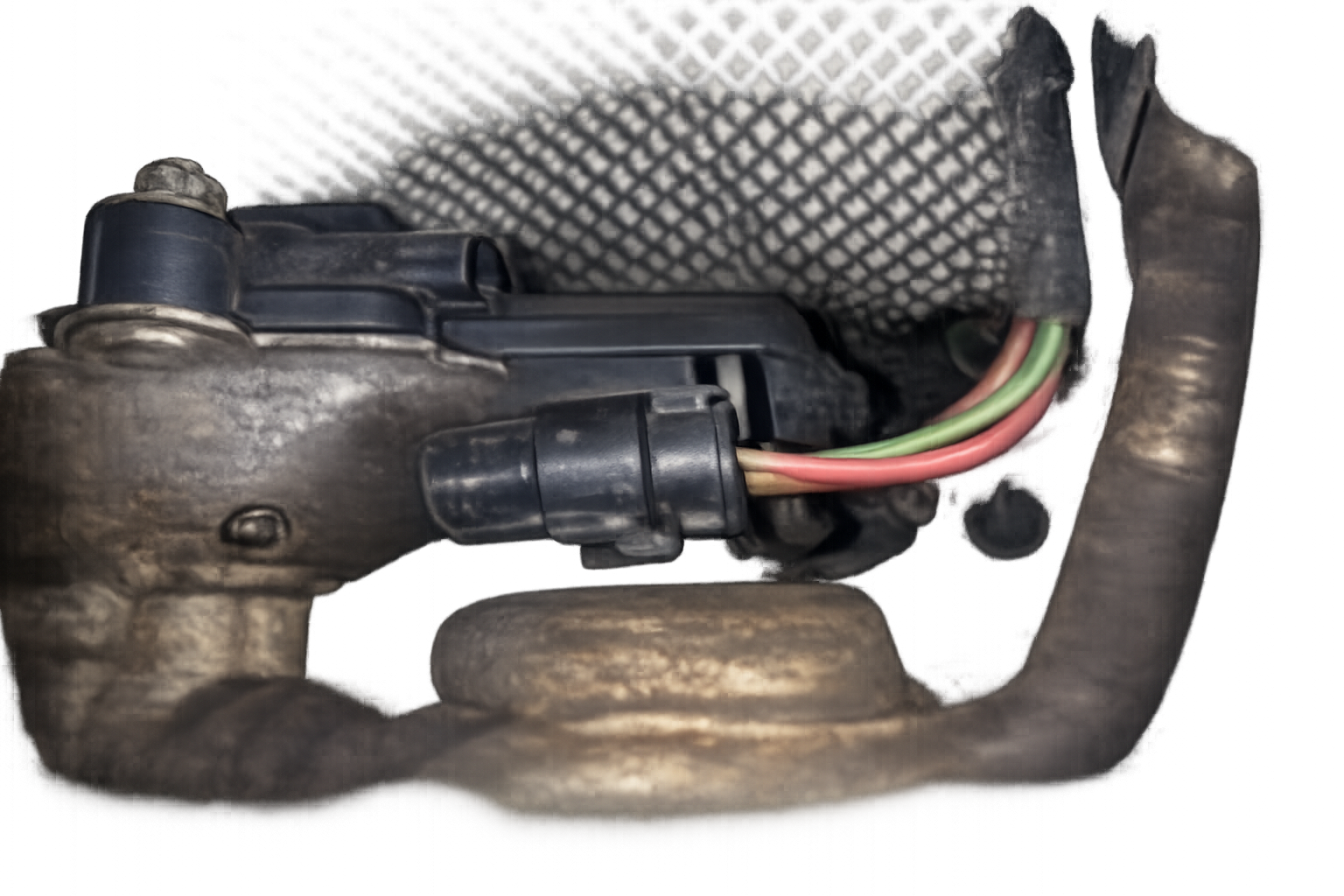

Disconnect the original connector from the vehicle's exhaust valves.
TIP:
If there is more than one exhaust valve, repeat this procedure for both, one on the left side and one on the right side. Disconnect the original plug from the vehicle's exhaust valve.
STEP 2:

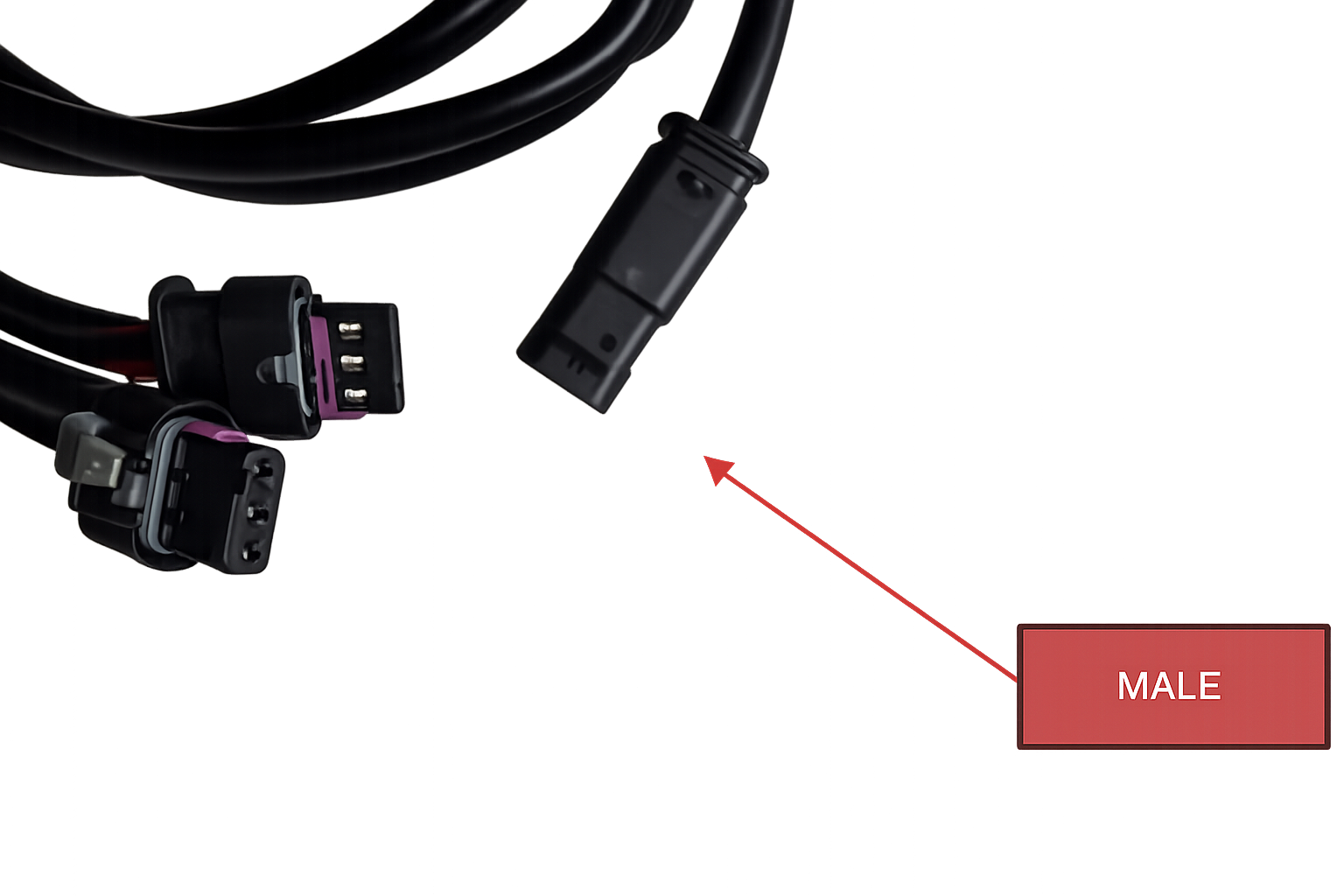

Select the MALE connector from the VAGKRAFT system (the image shows which
connector is MALE).
STEP 3:

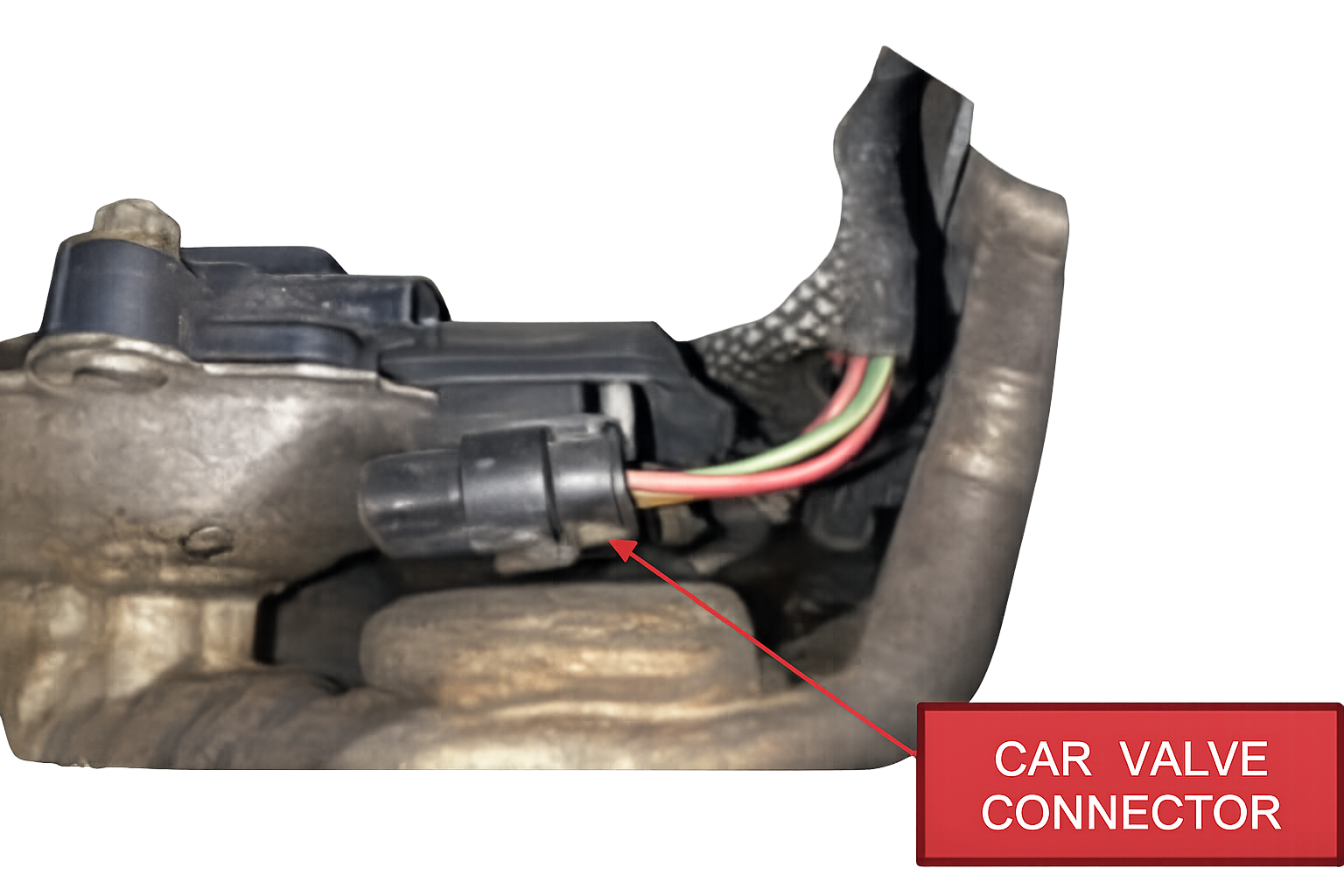

Connect the MALE connector from the VAGKRAFT system (previous image) to
your car valve connector (NEXT image shows what the connector looks like) (it can be
on the left or right side, choose the one that suits you best).
STEP 4:

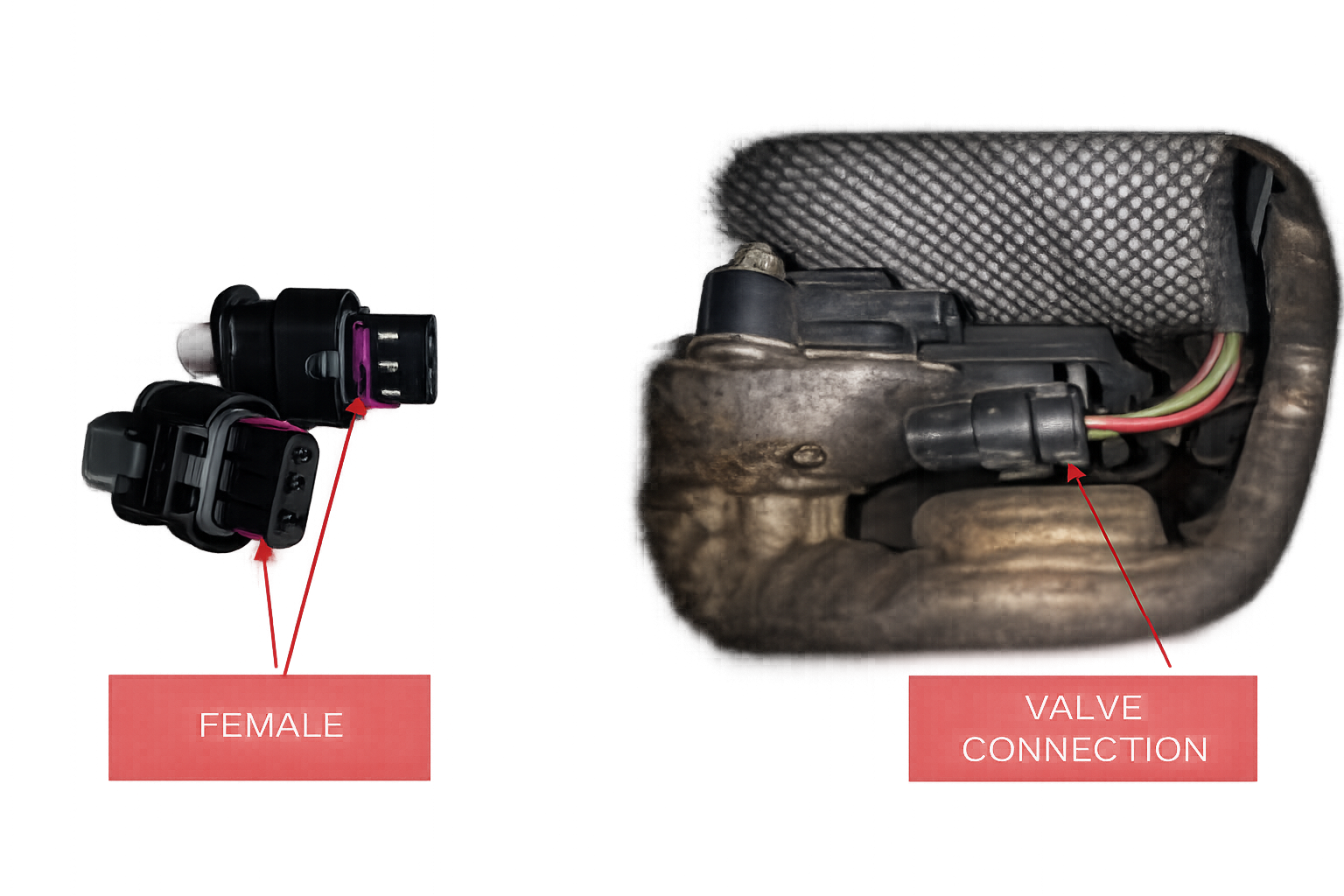

Now, connect VAGKraft kit female connectors into your valves.
STEP 5:
If your vehicle only has one factory valve, you can skip this step.

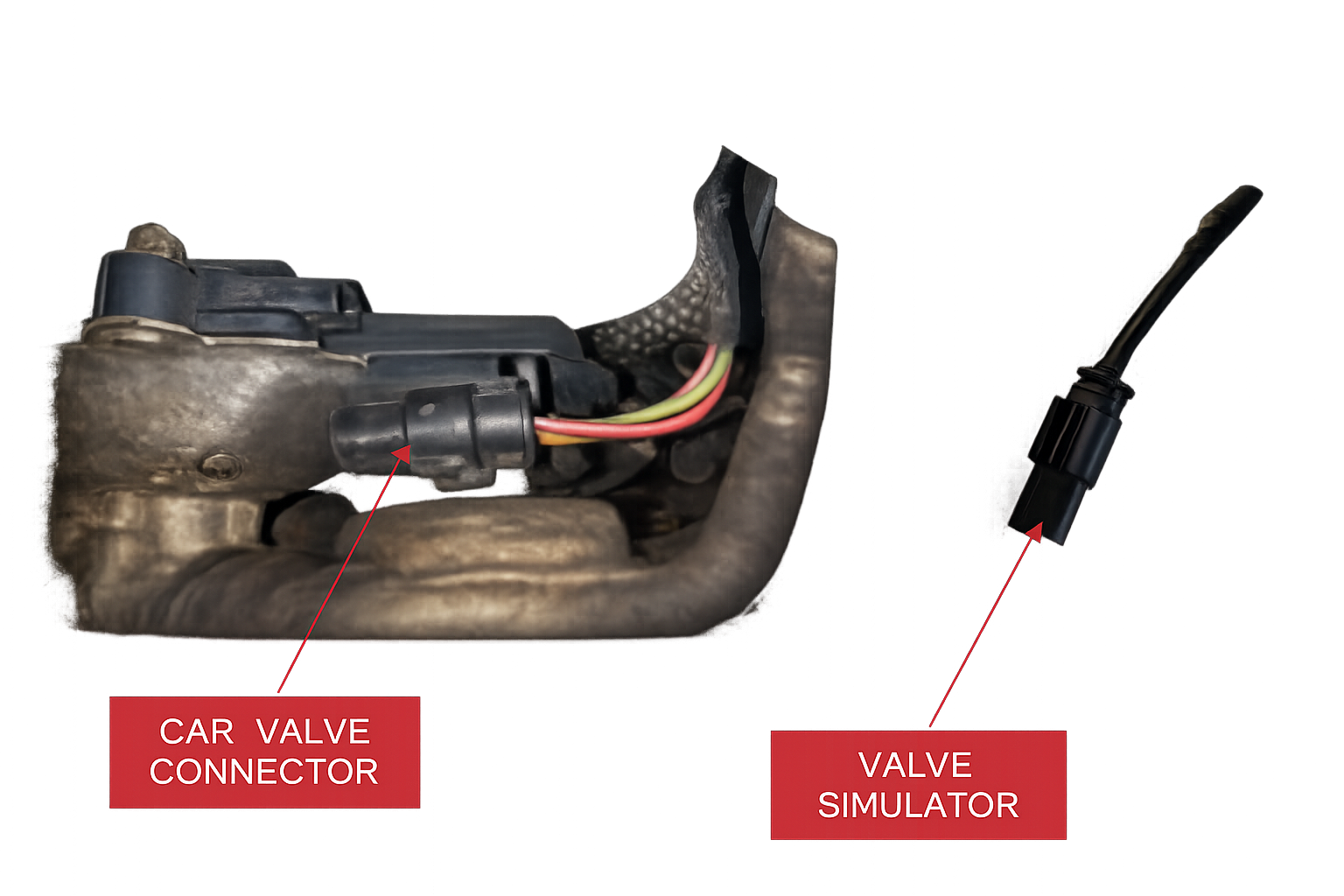

Otherwise, you will still have an extra “CAR VALVE CONNECTOR,” so you will need to connect our “VALVE SIMULATOR” to the remaining “CAR VALVE CONNECTOR.”
enjoy it.
